Additional information
| Dimensions | 7 × 22 × 333 cm |
|---|

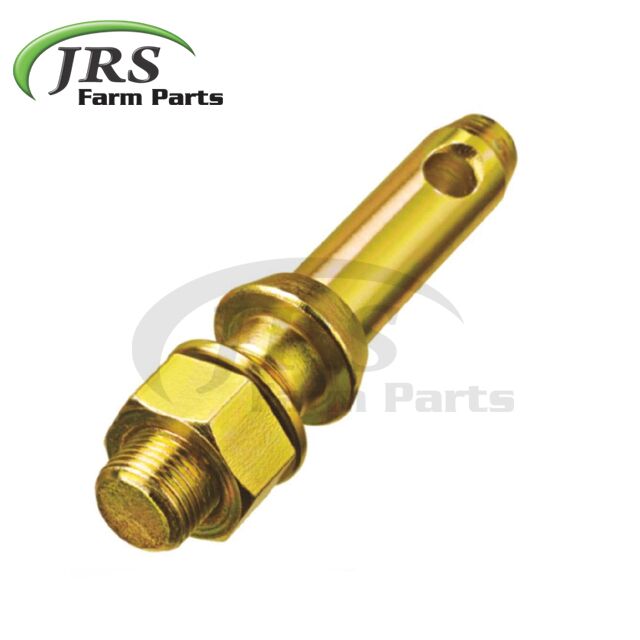

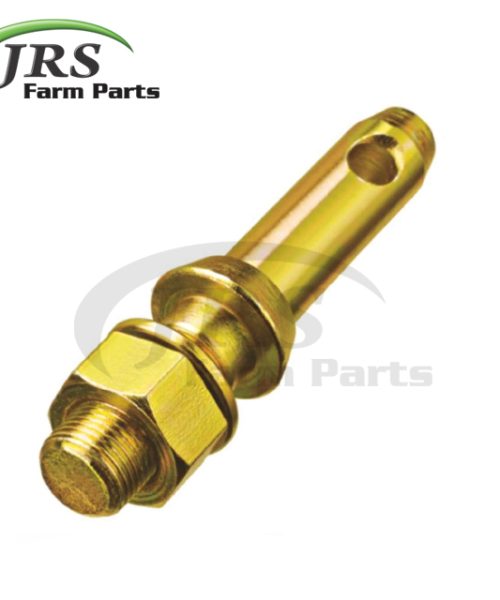

Lower Link Pin
Lower Link Pin

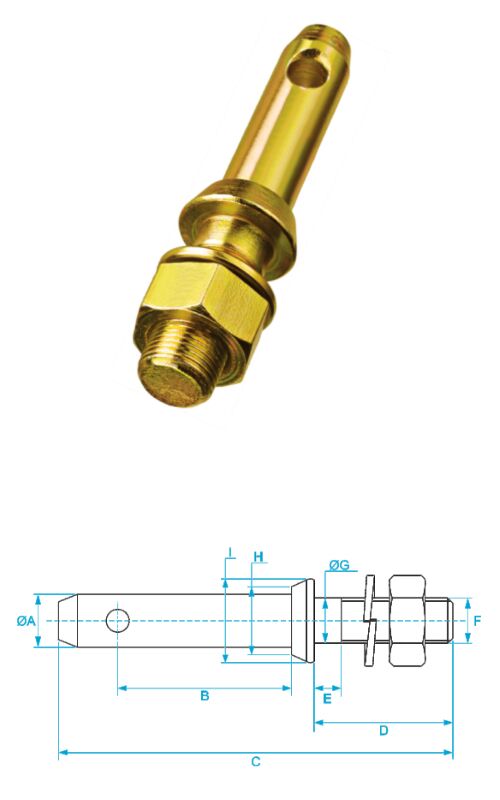

| CODE | A | B | C | D | E | F | G | H | I |
|---|---|---|---|---|---|---|---|---|---|
| ELLP2201M | 22 | 50 | 130 | 40 | 5 | 20×1.5 | 20 | 32 | 38 |
| ELLP2202M | 22 | 50 | 140 | 40 | 14 | 22×1.5 | 22 | 30 | 38 |
| ELLP2203M | 22 | 50 | 140 | 40 | 14 | 22×1.5 | 28 | 30 | 38 |
| ELLP2204U | 22 | 51 | 149 | 54 | 11 | 7/8″ UNF | 22 | 30 | 36 |
| ELLP2205U | 22 | 51 | 140 | 48 | 6 | 3/4″ UNF | 19 | 30 | 36 |
| ELLP2206U | 22 | 51 | 140 | 43 | 11 | 5/8″ UNF | 22 | 30 | 36 |
| ELLP2207U | 22 | 51 | 146 | 38 | 22 | 7/8″ UNF | 28.6 | 30 | 36 |
| ELLP2208U | 22 | 51 | 146 | 50.8 | 9.5 | 7/8″ UNC | 28.6 | 32 | 38 |
| ELLP2209U | 22 | 51 | 146 | 50.8 | 9.5 | 1″ UNF | 25.4 | 30 | 36 |
| ELLP2210U | 22 | 51 | 138 | 38 | 14 | 7/8″ UNF | 28.6 | 30 | 36 |
| ELLP2211M | 22 | 51 | 128 | 38 | 10 | 20×1.5 | 20 | 30 | 36 |
| ELLP2212M | 22 | 51 | 128 | 38 | 10 | 20×1.5 | 20 | 30 | 36 |
| ELLP2213M | 22 | 60 | 150 | 40 | 20 | 22×1.5 | 22 | 32 | 38 |
| ELLP2214M | 22 | 60 | 150 | 40 | 20 | 22×1.5 | 28 | 32 | 38 |
| ELLP2215M | 22 | 60 | 146 | 40 | 20 | 22×1.5 | 25 | 32 | 32 |
| ELLP2216U | 22 | 51 | 140 | 45 | 10 | 7/8″ UNF | 22 | 30 | 34 |
| ELLP2217U | 22 | 64 | 165 | 56 | 16 | 7/8″ UNF | 22.2 | 32 | 38 |
| ELLP2518M | 25 | 60 | 150 | 40 | 20 | 22×1.5 | 25 | 34 | 40 |
| ELLP2519M | 25 | 60 | 150 | 40 | 20 | 22×1.5 | 28 | 32 | 38 |
| ELLP2820M | 28 | 50 | 155 | 30 | 50 | 30×2.0 | 30 | 48 | 50 |
| ELLP2821M | 28 | 55 | 150 | 45 | 14 | 22×1.5 | 24 | 36 | 42 |
| ELLP2822M | 28 | 55 | 150 | 45 | 15 | 24×1.5 | 24 | 37 | 43 |
| ELLP2823M | 28 | 55 | 150 | 45 | 14 | 27×1.5 | 28 | 38 | 43 |
| ELLP2824M | 28 | 58 | 147 | 48 | 10 | 27×1.5 | 27 | 37 | 43 |
| ELLP2825M | 28 | 28 | 147 | 48 | 10 | 27×1.5 | 27 | 48 | 50 |
| ELLP2826M | 28 | 60 | 150 | 45 | 10 | 27×1.5 | 22 | 38 | 44 |
| ELLP2827M | 28 | 60 | 150 | 40 | 20 | 27×1.5 | 28 | 38 | 44 |
| ELLP2828M | 28 | 60 | 150 | 40 | 20 | 27×1.5 | 22 | 38 | 44 |
| ELLP2829M | 28 | 60 | 150 | 40 | 20 | 27×1.5 | 24 | 38 | 44 |
| ELLP2830M | 28 | 62 | 147 | 38 | 20 | 27×1.5 | 28 | 48 | 50 |
| ELLP2831M | 28 | 64 | 160 | 38 | 25 | 27×1.5 | 28 | 38 | 44 |
| ELLP2832M | 28 | 65 | 160 | 30 | 40 | 30×2 | 30 | 48 | 50 |
| ELLP2833M | 28 | 71 | 160 | 40 | 30 | 30×2 | 30 | 48 | 50 |
| ELLP2834U | 28.6 | 51 | 133.5 | 42 | 11 | 7/8″ UNF | 22 | 37 | 43 |
| ELLP2835U | 28 | 51 | 159 | 60 | 16 | 9/8″ UNF | 28.6 | 38 | 44 |
| ELLP2836U | 28.6 | 51 | 149 | 36.5 | 24 | 3/4″ UNF | 25.6 | 38 | 44 |
| ELLP2837U | 28.6 | 57 | 159 | 60 | 16 | 9/8″ UNF | 28.6 | 37 | 43 |
| ELLP2838U | 28.6 | 60 | 149 | 51 | 9.5 | 9/8″ UNF | 28.6 | 37 | 43 |
| ELLP2839U | 28.6 | 60 | 149 | 50.8 | 9.5 | 1″ UNF | 25.4 | 38 | 44 |
| ELLP2840U | 28.6 | 60 | 149 | 54 | 6.3 | 3/4″ UNF | 19 | 38 | 44 |
| ELLP2841U | 28.6 | 60 | 149 | 38 | 22 | 7/8″ UNF | 28.6 | 38 | 44 |
| ELLP2842U | 28.6 | 60 | 136.5 | 35 | 12.7 | 7/8″ UNF | 22 | 38 | 44 |
| ELLP2843U | 28.6 | 60 | 145 | 44 | 12.7 | 7/8″ UNF | 22 | 38 | 44 |
| ELLP2844U | 28.6 | 63.15 | 160 | 54 | 14 | 7/8″ UNF | 22.2 | 38 | 44 |
| ELLP2845U | 36 | 54 | 149 | 48 | 16 | 9/8″ UNF | 28.6 | 46 | 52 |
| ELLP2846U | 36.5 | 58 | 149 | 45 | 14 | 1.3/8″ UNF | 35 | 45 | 52 |
| ELLP2847M | 36.5 | 61 | 165 | 60 | 11 | 27×1.5 | 27 | 48 | 50 |
| Interested in this product ? Please contact us for the latest price |
|---|
Interested in this product ? Please contact us
- Additional information
- PRODUCT DETAILS
- ADDITIONAL INFORMATION
- COMPANY DETAILS
- FIND US ON
- Reviews (0)
PRODUCT DETAILS
ADDITIONAL INFORMATION
JRS offers a wide selection of lower link pins in different sizes and dimensions. The lower arm pin (pin, AXES D’ATTELAGE SIMPLES, pine, Per Attacco Attrezzi bolt) is actually an important metal part that is mainly used in the automotive industry to prevent any rotating part from coming off the axis while in motion ..
Features:
- Easy and safe to use.
- To install Acabado superior.
- Durability extended.
- Strong enough for a rough use.
- Elastic to install Buen agarre.
- Rigid design
- Fine finish
- High strength
Technical Parameters:
- Made by Mazak, Japan CNC based technology.
- Tolerance upto +-0.010 maintained.
- Material EN-8/L.C.
Specifications:
- Code: Check Products Tab
- Diameter : Customization available
- Usable Length : Customization available
Additional Information:
| Item Code: | Check Product Code Tab |
|---|---|
| Pay Mode Terms: | L/C (Letter of Credit),T/T (Bank Transfer) |
| Port of Dispatch: | Any Indian Port |
| Production Capacity: | 500000 pcs. per month |
| Delivery Time: | 40 DAYS |
| Packaging Details: | We provide wooden box packing |
Interested in this product ? Please contact us
COMPANY DETAILS
About the Company
| Year of Establishment | Legal Status of Firm | Nature of Business |
|---|---|---|
| 1982 | Limited Company | Exporter and Manufacturer |
| Number of Employees | Annual Turnover | Online Presence From |
| 501 to 1000 People | Rs. 1000 – 5000 Crore | Mar 2010 |
| GST | Import Export Code (IEC) | Exports to |
| 03AAACE0633N1ZY | 03920***** | 34+ Country |
JRS Farmparts is unit of Eastman Industries Limited and has emerged as preeminent firm in Manufacturer , Exporter and Supplier of Tractor Linkage Parts, Harvester Parts and Forging parts and Trailer parts. We provide best quality Tractor Pins, Clevis Pins, and Levelling Stabilizer Arms Assemblies. Our offered products have gained much acceptance in the market for their resilient design, excellent finishing, dimensional accuracy and long functional life. We continue to bring the latest state-of-art technological improvement through the regular analysis of critical aspects of manufacturing process with the approach of quality improvement. All our products are manufactured from the quality tested raw material and cutting-edge technology as per the industry set norms. The manufacturing is supported by latest fully automatic machines. Furthermore, our competitive price policy has provided us huge client base to serve. We are exporting our quality products in USA, Canada, Europe, Africa, Australia, Asian Country.
With perfect affinity of our expertise with modern infrastructure system, we are able to fabricate wide gamut of products for fulfilling divergent demands of the market. It is extensively used to install in various agricultural and construction machines. We incorporate a team of assiduous professional for manufacturing of products with their effective managing skills. We have adopted total quality management and set-up proper quality mechanisms to check all our products. Moreover, we market our products through the wide distributing network with utmost packaging quality under the definite assurance of in time deliverance.
